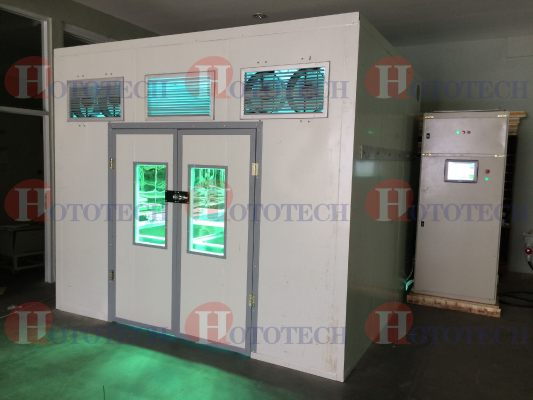

UV preconditioning Testing Machine for PV Module

UV preconditioning Testing Machine for PV Module standard

It's according to IEC61215, IEC61646, IEC61730 etc standard

UV preconditioning Testing Machine for PV Module Purpose

It's to precondition the module with ultra-violet (UV) radiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible ot UV degradation

UV preconditioning Testing Machine for PV Module specifications

1.Satisfy IEC61215 ,IEC61730 and IEC61646 standard ,

2.Effective area of irradiation :meanwhile satisfy two modules , modules size :2m*2m (according to customer requirement)

3.Irradiation strength :UVA UVB=100～150W/㎡

4.Un Uniformity: ≤15%

5.Spectral distribution : 280-320nm（UVB)’s irradiation strength is 280-400nm（UVA UVB）total irradiation strength 3%-10%

6.Temperature range :60±5℃

7.Temperature fluctuation :≤±2℃

8.Temperature measurement accurate: ±0.1℃

9.Temperature control :Air cooling control

10.Test machine is double door type

11.Lamp source type: adopt 1200W UV metal Halogen lamp , one lamp include UVA and UVB

12.Light irradiation type: Vertical type

13.testing machine view window have UV irradiation Shield function, to ensure the user’s secure

14.Intelligence PID control samples backplane temperature , real monitor and show temperature

15.Control software : By HOTOTECH researched and development

16.Computer software control and monitor , arrive set irradiance after, Power automatic stop , air cooling control continue working , exclude excess temperature in test chamber

17.Real time calculation and show the real test time

18.Real time intelligence calculation and show total irradiation , draw total irradiation curve

19.Real time calculation UVA/UVB Proportion and show it

20.Over temperature protection function, arrive over temperature protection after , the machine will stop the power and alarm meanwhile

21.When the machine cut off power , it has memory function

22.Test chamber body material can fully to resistance UV , have good sealing and thermal insulation

22.It’s has history data save function

23.With module installing frame , convenience every type module’s installing ( the max size :2*2m)
